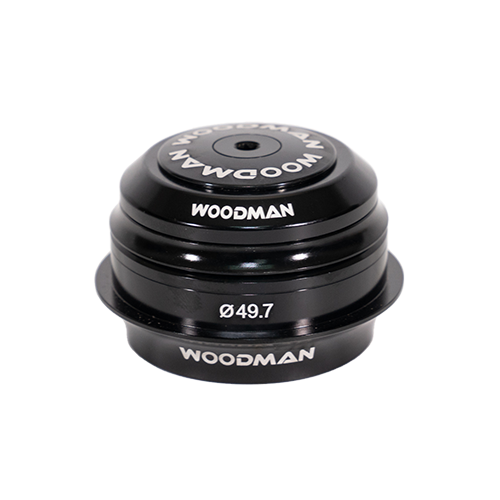

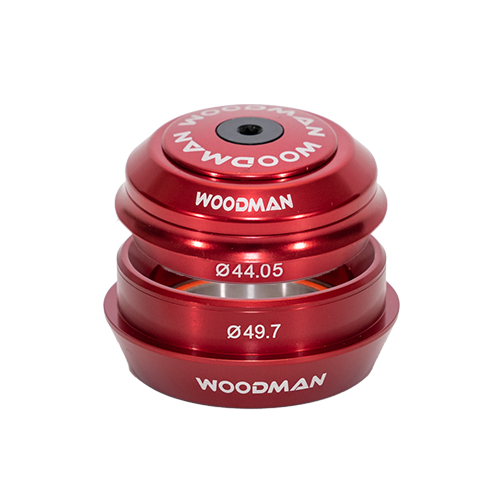

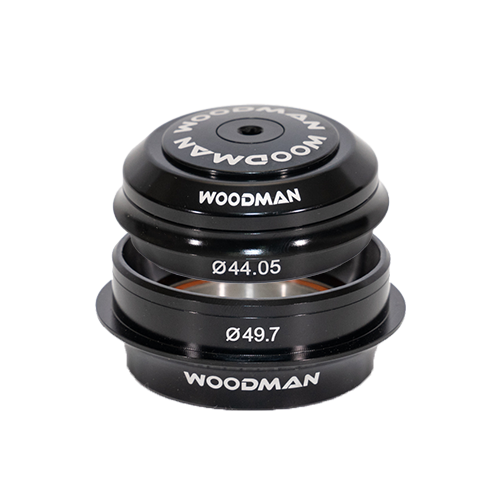

WOOdman Axis Advance 1.5 ZS44/EC49
The WOOdman Axis Advance 1.5 ZS44/EC49 headset is specially designed for a 44mm top and 49.7mm bottom headtube, along with a Straight 1-1/8" fork. The S.H.I.S is ZS44/28.6 and EC49/30.
MATERIALS: CNC-machined 6061 T6 Aluminum and durable sealed headset bearings
ZS44/ EC49 HEADSET TECH SPECS：
- S.H.I.S Top：ZS44/28.6
- S.H.I.S Bottom：EC49/30
- Fork Steerer：Straight 1 1/8"
- Top Bearing：WOOdman C45°/45° (42 x 6.5mm)
- Bottom Bearing：WOOdman C45°/45° (42 x 6.5mm)
- Crown Race: 30mm
-
WOOdman HEADSET TECHNOLOGY
Designed for high performance in extreme conditions and lightweight riding.
FL CAP
Dust Cover
20mm Dust Cover Advantages:
- Raises the stem height
- Eliminates the need for multiple spacers
- Looks better and weights less
- Less stress on the steerer tube
SP Hight Adjustment Plate
Because all frames are not created equal, and paint thickness may vary, the dimension of the headtube may be different from frame to frame. In order to keep the smallest possible gap between the top of the head tube and the headset cap, which guarantees the best headset sealing possible, we designed the SP Height Adjustment Plate. By adding or removing SP plates during headset cap assembly, you can adjust the gap’s height. Each WOOdman SP headset comes with three aluminum spacers.
Position Specific Headset Bearings
For the bike headset, the key and important element is the bearings! WOOdman bearings are sealed, with a retainer design for the top bearing and a full-ball and full-grease design for the bottom bearing. This meticulous design not only extends the lifespan of our bearings but also enhances their durability, enabling them to withstand even the most extreme riding conditions. As a result, they are the ideal choice for upgrading the headset bearing on road bikes or MTBs.
SGC Fork Crown Race
One of the key features of the SPG series is the SGC fork crown race, which can be assembled or removed without the need for any tools.
Our patented SGC crown race allows for tool-free installation on the fork crown, and the reinforced steel ring prevents deformation during the process. Additionally, we have incorporated a seal to minimize the need for maintenance.
