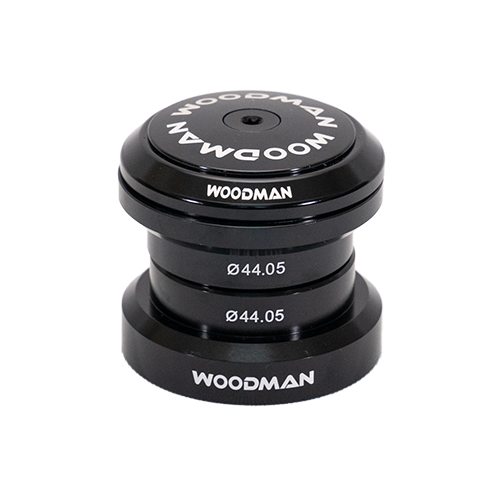

WOOdman Axis SICR Q 1.5 XL EC44/EC44
WOOdman Axis Q 1.5 XL EC44/EC44 is compatible with a 44mm headtube and 1 1/2" straight steerer forks. It's engineered to deliver smooth steering and enhance stability on any terrain. Perfect for your road bike or MTB!
It comes equipped with the WOOdman SGC Crown Race, Position Specific Bearings, and SP Height Adjustment Plate, making installation effortless with its tool-free design.
MATERIALS: CNC-machined 6061 T6 Aluminum
EC44/EC44 HEADSET TECH SPECS：
Classic 44mm headtube for straight 1.5 fork with External (EC) top and bottom.
- S.H.I.S Top：EC44/38.1
- S.H.I.S Bottom：EC44/40
- Fork Steerer：Straight 1.5"
- Top Bearing：WOOdman X45°/45° (52 x 40 x 7mm)
- Bottom Bearing：WOOdman X45°/45° (52 x 40 x 7mm)
-
WOOdman HEADSET TECHNOLOGY
FL CAP
SP Hight Adjustment Plate
Because all frames are not created equal, and paint thickness may vary, the dimension of the headtube may be different from frame to frame. In order to keep the smallest possible gap between the top of the head tube and the headset cap, which guarantees the best headset sealing possible, we designed the SP Height Adjustment Plate. By adding or removing SP plates during headset cap assembly, you can adjust the gap’s height. Each WOOdman SP headset comes with three aluminum spacers.
Position Specific Bearings
For extreme use or light weight - the loads a headset has to cope with remain the same.In our Position Specific design we increase the number of balls in the bottom bearing to nearly 100% more than the competition. This, along with our full-grease spec, nearly doubles the lifespan of the lower bearing.
SGC Fork Crown Race
One of the key features of the SPG series is the SGC fork crown race- it can be assembled or removed without any tools.
Our patent SGC crown race allows it to be installed on the fork crown without tools, while the reinforced steel ring prevents deformation during the process. We also added a seal to ensure the least amount of maintenance possible.
