WOOdman Axis LTN-R 1" Threaded Headset
If you're looking for a reliable and easy-to-install 1 inch threaded headset, the WOOdman headset is a great choice. LTN-R 1" headset comes in two different sizes: EC30.2/25.4 EC30.2/26.4, which is Euro Campy specifications, as well as EC30/25.4 EC30/27.0, which is JIS Japan standards.

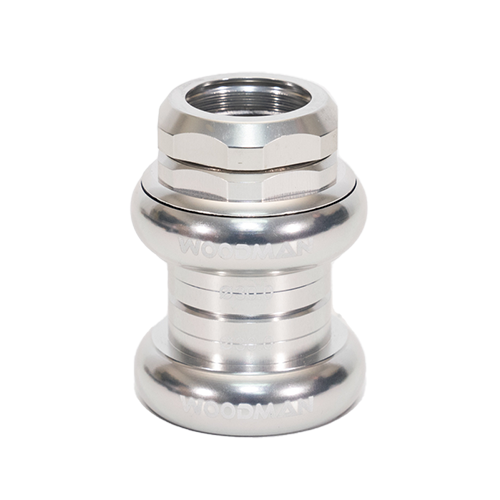

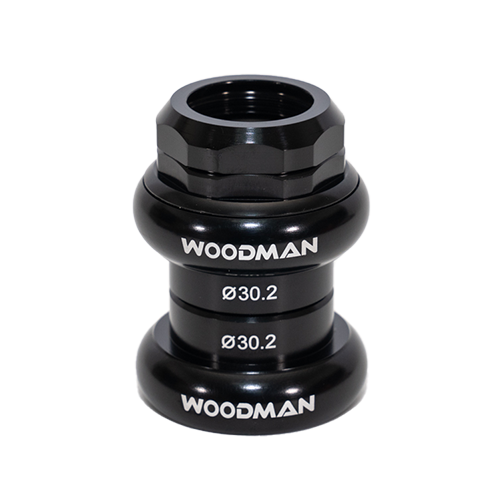

The WOOdman 1 inch threaded headset is available in two different colors: high polish silver and black, so you can choose the one that best matches your bike's aesthetics. The headset is also equipped with WOOdman's sealed bearings, which ensure a smooth and comfortable ride.
MATERIALS: CNC-machined 6061 T6 Aluminum
1" threaded headset for 1" straight threaded fork.

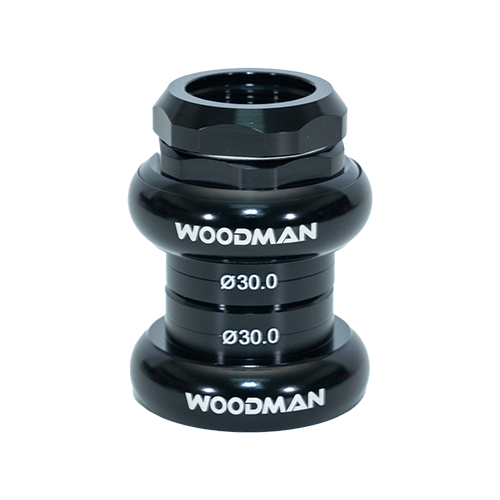

Available in JIS size (EC30/25.4 EC30/27.0) and Campy size (EC30.2/25.4 EC30.2/26.4)
- Fork Steerer：Straight 1" threaded
- Top Bearing：WOOdman LT36°/45° (38 x 27.15 x 6.5mm)
- Bottom Bearing：WOOdman LT36°/45° (38 x 27.15 x 6.5mm)
WOOdman HEADSET TECHNOLOGY
Position Specific Bearings
For extreme use or light weight - the loads a headset has to cope with remain the same.In our Position Specific design we increase the number of balls in the bottom bearing to nearly 100% more than the competition. This, along with our full-grease spec, nearly doubles the lifespan of the lower bearing.
SGC Fork Crown Race
One of the key features of the SPG series is the SGC fork crown race- it can be assembled or removed without any tools.
Our patent SGC crown race allows it to be installed on the fork crown without tools, while the reinforced steel ring prevents deformation during the process. We also added a seal to ensure the least amount of maintenance possible.
